製品詳細
起源の場所: 中国
ブランド名: ENWEI
証明: CE
モデル番号: 3400
支払及び船積みの言葉
最小注文数量: 1
価格: 交渉可能
パッケージの詳細: 木製のケース;容器
受渡し時間: 35営業日
支払条件: T/T
供給の能力: 45ユニット/月
ソーラーパネル: |
3*400W,単結晶性シリコン |
バテリー: |
4*200Ah, DC12V, ゲルバッテリー |
マスト: |
6Mマニュアル |
IP評価: |
IP65 |
ケーブル: |
4*1.2mm 電源ケーブル |
配線: |
米国標準、7ピンプラグ |
寸法: |
1850*1380*6000mm |
応用: |
遠隔地監視,砂漠,鉱山,畑,農場 |
ソーラーパネル: |
3*400W,単結晶性シリコン |
バテリー: |
4*200Ah, DC12V, ゲルバッテリー |
マスト: |
6Mマニュアル |
IP評価: |
IP65 |
ケーブル: |
4*1.2mm 電源ケーブル |
配線: |
米国標準、7ピンプラグ |
寸法: |
1850*1380*6000mm |
応用: |
遠隔地監視,砂漠,鉱山,畑,農場 |

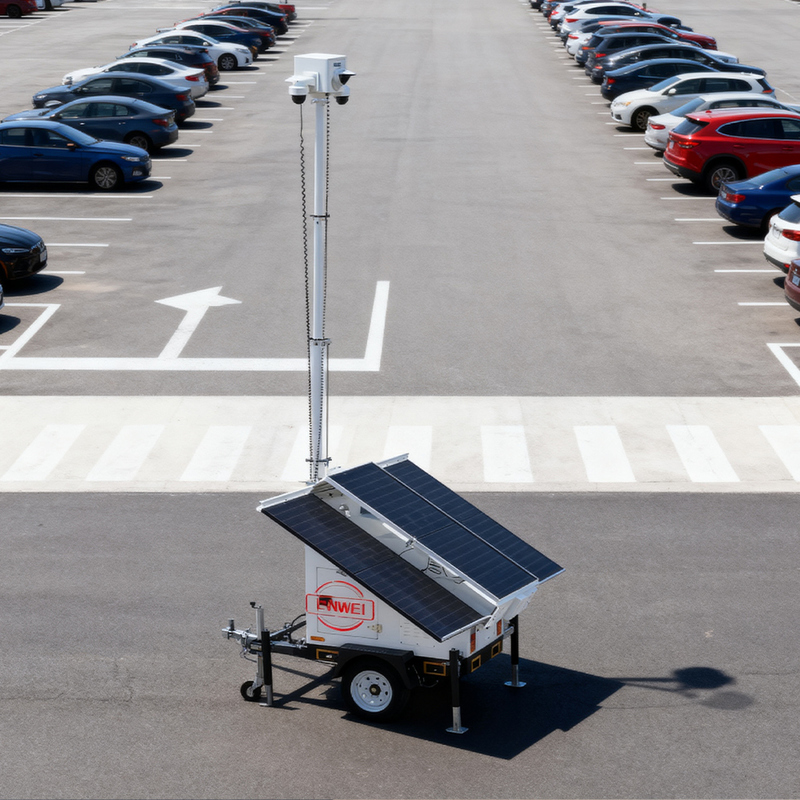

Solar Surveillance Trailer Flexible Deployment For Parking Lots Job Sites
The Solar Surveillance Trailer is an innovative surveillance device designed specifically for remote locations. It requires no external power source and can operate 24/7. Whether in deserts, mining areas, fields, or farms, this trailer provides a reliable, real-time surveillance solution.
Core Configuration
Solar System: Equipped 3*400W monocrystalline silicon solar panels for efficient solar power conversion
Energy Storage System: 4*200Ah Gel batteries,DC12V system voltage, ensuring continuous power supply at night and on rainy days
Control System: MPPT 60A solar controller with up to 95% conversion efficiency
Mounting System: A 6m manual mast that can accommodate a customer-provided HD camera
Optional Accessories: Charger and Inverter
Product Features
CE Certified: Complies with EU safety standards, ensuring quality assurance
Waterproof Design: Adapts to harsh weather conditions
Flexible Deployment: Quickly moves to any area requiring monitoring
Durability: Durable construction for a long service life
Model 3400 solar surveillance trailer | |
Solar panel |
3*400W, monocrystalline silicon |
Baterry |
4*200Ah, DC12V, Gel battery |
Interver |
1000W |
System voltage |
DC 24V |
Mast |
6m manual |
Solar controller |
MPPT 60A, 95% |
Charger |
1 |
Tires |
186/70 R14 |
Wiring |
US standard, 7-pin plug |
Weight |
about 1000kg |
Dimensions |
1850*1380*6000mm |
Ordering process: Ensure that every step is clear and transparent
①Discuss ordering requirements —— ②Placing an Order —— ③Designer Design Drawings —— ④Confirm drawings —
— ⑤produce products —— ⑥Confirm product —— ⑦Packaging and transportation —— ⑧Received feedback
Application Scenarios
Parking lots
Safety monitoring in remote mining areas
Crop growth monitoring in farmland
Environmental protection monitoring in the wild
Security at temporary events
